산업용 초음파 분산기

UIP500hdT

500watt, 20kHz

Booster : 20, 40, 80, 120, 160 %

Flow Probe : Ø18, 22, 34, 40, 50, 55,64mm

samples 0.25 to 2 l/min (water)

Batch Volume : 5 liter

SD Card, LAN interface, remote control

24 hours per day (24h/7d),

0.5 to 3m3 per day

UIP500hdT (순환식)

500watt, 20kHz

Probe : Ø34mm

Flow-cell probe : Ø34mm

samples : 1 to 2 l/min (water)

Volume : 20 liter

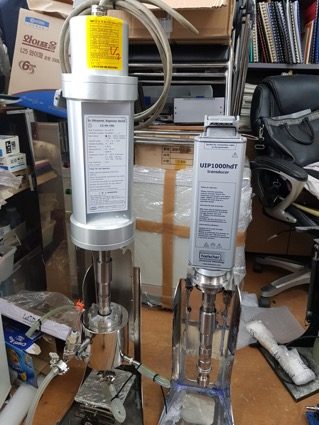

UIP1000hdT

1000watt, 20kHz

Booster : 20, 40, 80, 120, 160 %

Flow Probe : Ø18, 22, 34, 40, 50, 55,64mm

samples 0.5 to 4 l/min (water)

Batch Volume : 5 liter

SD Card, LAN interface, remote control

24 hours per day (24h/7d),

1 to 5m3 per day

UIP1000hdT (순환식)

1000watt, 20kHz
Probe : Ø34mm, 80% booster
Flow-cell probe : Ø34mm
samples : 0.5 to 4 l/min (water)
Volume : 20 liter

UIP1000hdT (batch)

1000watt, 20kHz
Probe : Ø34mm, 80% booster
Flow-cell probe : Ø55mm, 500mm
samples : cnt (water)
Volume : 30 liter

5 x UIP1000hdT (순환식)

5000watt, 20kHz
Probe : Ø34mm, 80% booster
Flow-cell probe : Ø34mm, 150ml
samples : Silica
Volume : 80 liter

2 x UIP1000hdT (순환식)

2000watt, 20kHz

Probe : Ø34mm, 80% booster

Flow-cell probe : Ø34mm, 150ml

samples : cnt (water)

Volume : 80 liter

UIP1000hdT

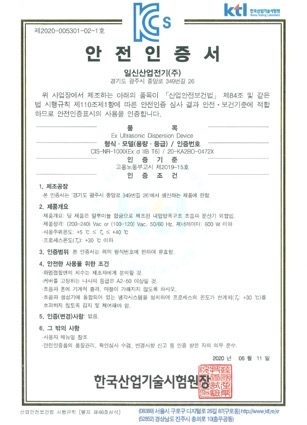

국내 인증 방폭 Ex dllB T6

UIP1500hdT

1500watt, 20kHz
Booster : 20, 40, 80, 120, 160 %
Flow Probe : Ø18, 22, 34, 40, 50, 55,64mm
samples 0.5 to 6 l/min (water)
SD Card, LAN interface, remote control
24 hours per day (24h/7d),
1 to 8m3 per day
viscosity of up to 100.000cp

UIP2000hdT

2000watt, 20kHz
Booster : 20, 40, 80, 120, 160 %
Flow Probe : Ø18, 22, 34, 40, 50, 55,64mm
samples 0.5 to 8 l/min (water)
SD Card, LAN interface, remote control
24 hours per day (24h/7d),
1 to 10m3 per day
viscosity of up to 100.000cp

UIP1000hd-ex (방폭형)

1000watt, 20kHz
Booster : 20, 40, 80, 120, 160 %
Flow Probe : Ø18, 22, 34, 40, 50, 55,64mm
samples 0.5 to 4 l/min (water)
Batch Volume : 5 liter
SD Card, LAN interface, remote control
24 hours per day (24h/7d),
1 to 5m3 per day

UIP4000hdT

4000watt, 20kHz
Booster : 20, 40, 80, 120, 160 %
Flow Probe : Ø18, 22, 34, 40, 50, 55,64mm
samples 4 to 20 l/min (water)
SD Card, LAN interface, remote control
24 hours per day (24h/7d),
1 to 20m3 per day
viscosity of up to 100.000cp

UIP1600hdT

16000watt, 20kHz
Booster : 20, 40, 80, 120, 160 %
Flow Probe : Ø18, 22, 34, 40, 50, 55,64mm
samples 4 to 40 l/min (water)
SD Card, LAN interface, remote control
24 hours per day (24h/7d),
1 to 100m3 per day
viscosity of up to 100.000cp
